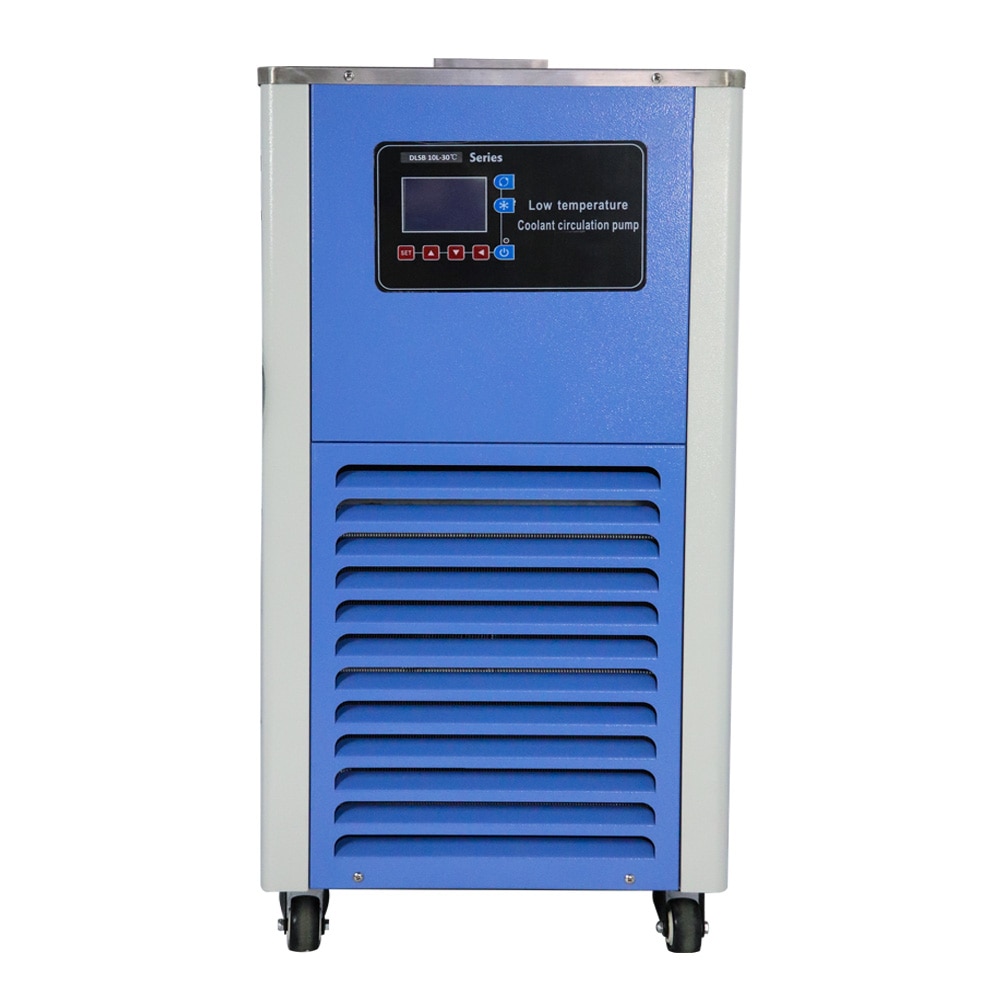

Low Temperature DLSB-5/20 Industry Use Recirculating Water Chiller
Brief introduction
Low-temperature circulating pump also know as Low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration, the main function is provide low temperature liquid, low temperature water bath . It can also connect with rotary evaporator, vacuum freeze drying oven , cycle water vacuum pump , magnetic stirrer and so on , to achieve the chemical reaction or drug store under low temperature condition.
1. High Quality Air-cooled hermetic imported compressor group
2.Exclusive and high quality relay, protector, and capacitor.
3. Microprocessor controller, displays display, simple operation.
4. Large cooling capacity and high cooling speed
5. Circulation pump flow can be customized to meet the practical needs of different customers..
6. All models of the machine temperature and cooling capacity can be customized to meet the customer’s actual needs.
7. The evaporation rate of plate type refrigerate circulators can rise up 50% than normal.
Technical Parameter
|
Model |
DLSB-5/10 |
DLSB-5/20 |
DLSB-5/25 |
DLSB-5/30 |
DLSB-5/40 |
DLSB-5/60 |
DLSB-5/80 |
DLSB-5/120 |
|
|
Refrigerant Performance |
Volume(L) |
5 |
|||||||
|
No Load Min. Temp. (℃) |
-15 |
-24 |
-27 |
-33 |
-42 |
-62 |
-82 |
-123 |
|
|
Cooling Capacity (W) |
1328-319 |
1328-319 |
1894-447 |
2733-627 |
2036-602 |
2036-330 |
2036-180 |
3888-160 |
|
|
Circulating Performance |
Flow(L/min) |
20 |
|||||||
|
Lift(m) |
4-6m |
||||||||
|
Temperature Control Performance |
Coolant Temp. (℃) |
-10 |
-20 |
-25 |
-30 |
-40 |
-60 |
-80 |
-120 |
|
Temp. Precision (℃) |
±0.2 |
||||||||
|
Working Condition |
Power Supply |
220V/50Hz |
220V/50Hz or380V/50Hz |
||||||
|
Environment Temp (℃) |
25 |
||||||||
|
Environment Humidity |
(60-80%) Ventilation |
||||||||
|
Machine Dimensions |
Length (mm) |
500 |
500 |
545 |
545 |
600 |
680 |
700 |
950 |
|
Width (mm) |
370 |
370 |
370 |
370 |
410 |
500 |
650 |
710 |
|
|
Height (mm) |
540 |
540 |
640 |
640 |
670 |
780 |
900 |
940 |
Precautions
Note:
Please read it carefully before using the instrument.
1, The machine’s power standard is 220 v, should be equipped with reasonable grounding system and the safety of the standard three pole socket.
2, Before use, please put into the liquid medium (water, alcohol, antifreeze can also be), medium level should not lower than cold tube and 20 mm below the workbench is advisable.Don’t let sand , acid-base class material or debris into the cooling system or the circulation pump, to prevent clogging or corrosion liner and coil.
3, Recurring observe the slot liquid level height, when the liquid level is too low, should be timely to add liquid medium.
4, When pump working temperature is lower, should pay attention not to open the cover. Never put your hand into the groove, to prevent frostbite.
5, The Pump working environment, temperature and lt;25 ° C , humidity and lt; 60 ℃, no obstacles in the instrument around 300 mm. Indoor open flame is strictly prohibited.
6, When the liquid outer loop, the client shall pay special attention to the robustness of the out pipe joint, fight off, in order to avoid liquid leakage.
