1st Introduction

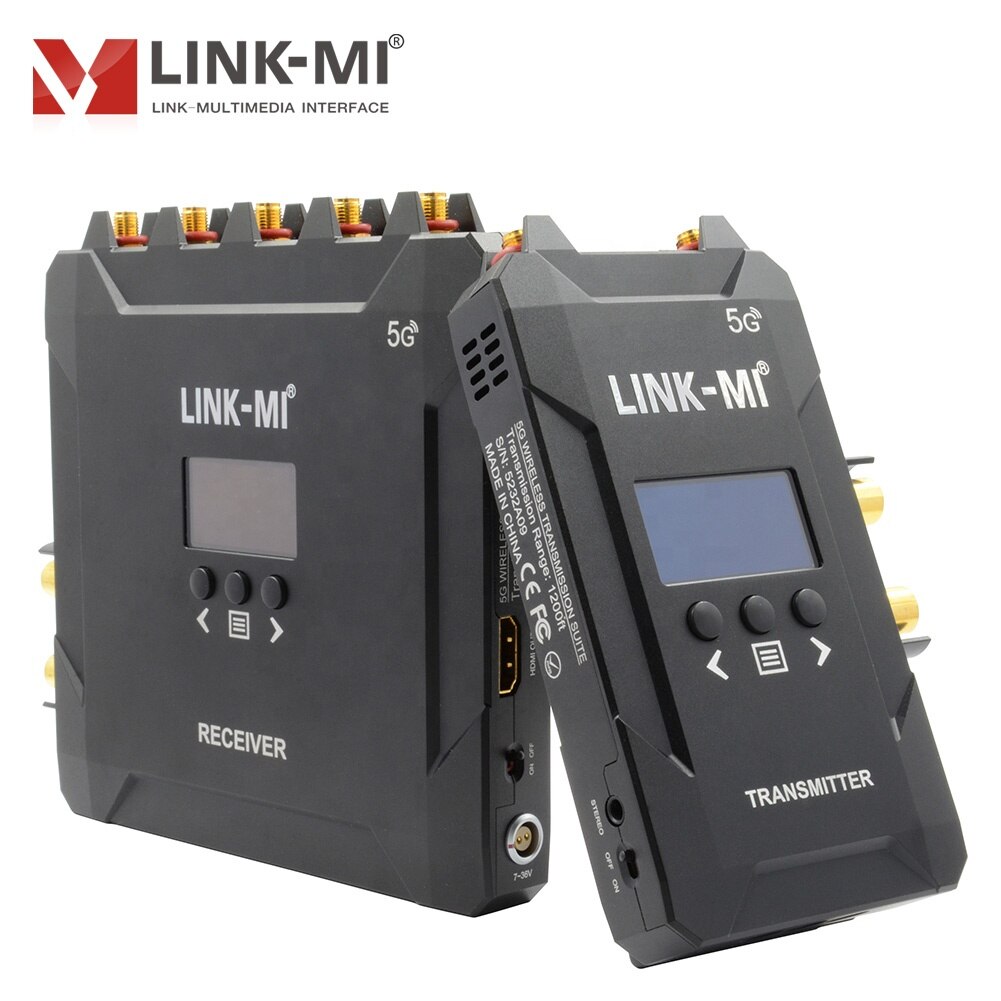

This Wireless HD HDMI/SDI transmission products that use the highest level of wireless communication technology enable transmit lossless, uncompressed, no-delay 3G SDI or full HD HDMI signals .This product includes a transmitter and a receiver, and is equipped with 3G/HD SDI interface and full HD HDMI interface. The transmitter has two antennas and the Receiver has five antennas.The antennas’ operate frequency is 5.1GHz~5.9GHz, and the frequency can be changeable through the software configuration to adopt the wireless regulatory requirements in the world.
2nd Features
1) HDMI/3G-SDI Wireless transmission range up to 400m/1312ft
2) HDMI and 3G-SDI interface
3) 5GHz ISM frequency, Max. 10 frequency channels can be selected by button
4) OLED screen displays power and amp; video status as well as receiver RSSI
5) Support point to point, and point to multiple network topology
6) Sony F970 and V-mount battery buckle for easy installation on site
7) Resolution up to 1080P@60Hz, zero delay and uncompressed transmission
8) Wide range power supply from 7V to 36V
3rd Panel Description
4th Connection Diagram
5th Specification
| Item | Transmitter | Receiver |
| Interface | 1 SDI in, 1 SDI loop out, 1 HDMI in, 1 DC in | 1 SDI out, 1 HDMI out, 1 DC in |
| Power consumption | and lt;6.5W | and lt;6W |
| Video bandwidth | max. TMDS clock frequency 148.5MHz, 4.45Gbps | |
| Resolution and distance | 1080P@60Hz, 400m/1300ft | |
| Audio formats | SDI embedded 4 Channel 24-bit/48KHz | |
| Bandwidth | 40MHz | |
| Frequency band | 5.0GHz~5.9GHz, configurable with China, USA, Japan, Europ etc | |
| Transmission power | max. 21dBm | / |
| Receiving sensitivity | / | -75dBm |
| SDI meta data | Time code: LTC_VITC1/2; remote control: trigger | |
| ESD level | HBM+/-8KV (contact discharge) | |
| Dimension (L*W*H) | 134.4*80.3*34.6mm | 156.6*141.4*43mm |
| Net weight | 0.232kgs without antenna | 0.512kg without antenna |
| Temperature | Operation: 0 to +40℃; -20 to +60℃ | |
