With the significant increase in 4K/UHD TV sets hitting the Head-end market, content providers and TV broadcasters are looking for low cost Video solution to address the needs of Collect the UHD H264, H265, MPEG2, AVS+ Channels from Cable, Terrestrial, Satellite and IPTV Networks, IRD1511C Decoder is the answer.
Advanced Modular Receiver has the capability to provide the ultimate feature-set of HEVC UHD/4K, 2160p@30fps, 1080p allowing broadcasters to achieve the highest possible video quality.
IRD1511C offers Main, Main 10 and Main 4:2:0 4:2:2 High Definition decoding in all industry-standard compression formats combined with optional one Tuners in DVB-S2, DVB-T2, DVB-C, works as ASI and TS/IP together. Up to 2 CI slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. The unit ingests is through DVB-ASI or GigE and output is through 3G SDI, HD-MI2.0, AV ports. This efficient and flexible configuration enhances the use cases and overall effectiveness of the product.
- MPEG2, H.264, AVS+, HEVC Decoded in UHD/4K,HD and SD
- Locking Inputs signals: IP, ASI and Tuners simultaneously
- Optional Tuners DVB-S2, DVB-T2 or DVB-C inputs
- Teletext and DVB subtitle supported
- 1*MPTS and 8*SPTS UDP/RTP over Gbe IP out
- Up to 2 CI slots, Biss 1/Biss E decryption
- MPEG-TS of Tuners ingest through DVB-ASI 1/GbE Ports, TS of ASI ingest through
- DVB-ASI 2 /GbE Ports
- Low Latency decode
- Image enhancement, denoising, sharpening, deinterlace, anti-sawtooth flicker
- Audio decoding: AC3/E-AC3/AAC/MPEG1 L2
- Front-panel and web-based user interfaces

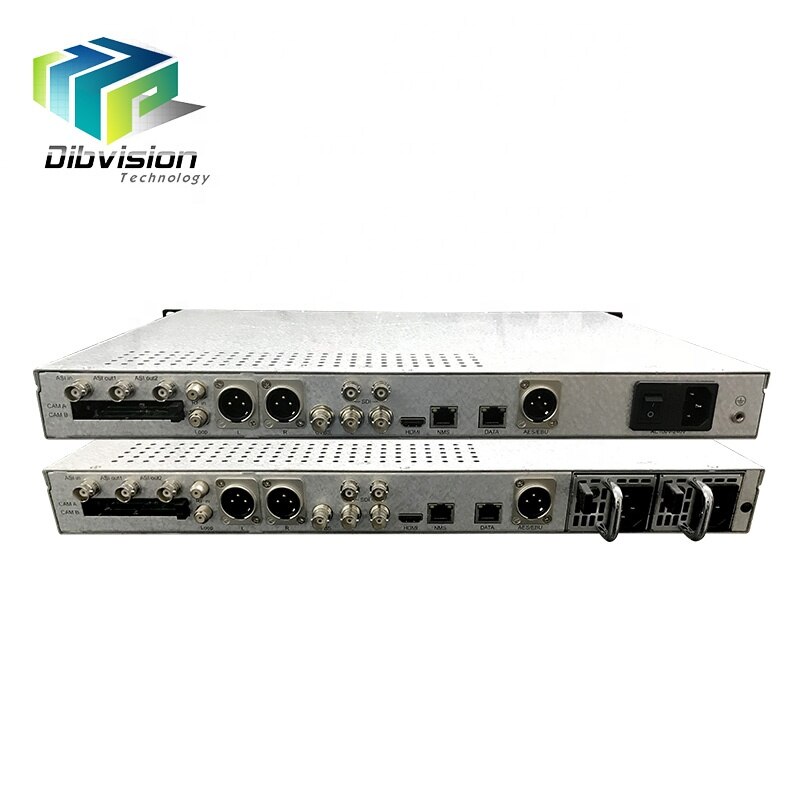

Front and Back Panel Picture
Application
- Video Contribution and Distribution in TV studio Station
- Satellite digital TV,Terrestrial digital TV, Cable TV broadcasting
- Contribution decode of high bitrate 4K/UHD HEVC/H.264 video service
Principle Chart
|
DVB-S/S2 Tuner input |
|
|
DVB-S/S2 Tuner Input |
1*RF input, 1*RF loop out 75Ω |
|
Input frequency |
950~2150MHz |
|
Input level |
-25~ -65 dbm |
|
Symbol Rate |
1 ~ 45msps |
|
Roll-off Factor |
0. 2, 0.25, 0.35 |
|
FEC Code Rate |
All rates compatible with the standard |
|
LNB power supply |
13V, 18V selectable, 22KHz selectable |
|
Constellation |
QPSK, 8PSK |
|
DVB-C Tuner input |
|
|
DVB-C Tuner Input |
1*RF input, 1*RF loop out 75Ω |
|
Input Frequency Range |
48~862MHz |
|
Input Level |
45~75dbuV |
|
Modulation mode |
16/32/64/128/256QAM |
|
DVB-T/T2 Tuner input |
|
|
DVB-T/T2 Tuner Input |
2*RF input, 2*RF loop out 75Ω |
|
Input Frequency |
44~1002MHZ |
|
Input Level |
-20 ~ -100dbm |
|
Modulation mode |
DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM |
|
Bandwidth |
6MHz, 7MHz, 8MHz |
|
Guard Interval |
DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 |
|
Carrier wave |
DVB-T: 2K/8K DVB-T2: 1K/2K/4K/8K16K/32K |
|
FEC: DVB-T |
DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5 /6 |
|
TS in/output interfaces |
|
|
DVB-ASI |
1xASI input, 2x ASI outputs. ≤120Mbps Impedance 75Ω |
|
MPEG over IP |
Multicast/unicast Connectors 1×100/1000M Base-T, RJ45 Connectors 1×100/1000M Base-T, RJ45 Encapsulation Protocols MPEG-TS over UDP/RTP DVB Mode: The IP stream will include all The programs and will be sent to the specified multicast or unicast IP Address. IPTV Mode: The input transport stream is de-muxed into individual programs, each in a different IP stream. Up to 8 IPTV addresses |
|
Output Ports |
|
|
HD-MI Output |
|
|
Implementation standards |
1 * HD-MI 2.0a with HDCP1.2 |
|
Resolution |
up to UHD/4K @30fps, 1080p@60fps |
|
SD/HD SDI Output |
|
|
Interface |
2×BNC, 75Ω |
|
Resolution |
up to 1080i@60fps |
|
SD-SDI output |
SMPTE 259M, 270 Mb/s (10bit) |
|
HD-SDI output |
SMPTE 292M, 1.485 Gbit/s (20bit) |
|
Output level |
800mV+-20 p-p |
|
Analog Audio Output |
|
|
Connector Type |
1*RCA, 1*XLR |
|
Audio Output mode |
Left, Right, Dual Mono, Stereo |
|
Analog Video Output |
|
|
Connector Type |
1*RCA, 75Ω |
|
Output level |
I.0 Vp-p±5% Standard test stream |
|
CVBS Standard |
PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ
|
|
SNR |
≥ 56dB |
|
synchronizing amplitude |
300±20mVP-P |
|
frequency characteristic |
±0.8 dB ( 4.8MHz); ±1 dB ( 4.8-5MHz ); +0.5/-4 dB`( 5.5 MHz) |
|
Output amplitude |
700±30mVP-P |
|
Differential gain |
≤ 8% |
|
Digital audio output |
|
|
Connector Type |
1*AES/EBU |
|
Video Decoding |
|
|
Video Standard |
MPEG-2; MPEG 4 AVC/H.264; H.265; AVS+ |
|
Video Resolution |
3840×2160@30(UHD) 1920x1080P60, 1920x1080P50 1920x1080i60, 1920x 1080i50 1080x720p60, 1080x720p50 720x 576P, 720x 576I 720x 480P, 720x 480I |
|
Chroma Sample |
4:2:0, 4:2:2 |
|
Bit Depth |
8-bit, 10-bit |
|
Decoding Latency |
low latency mode: 300-1000ms |
|
HEVC (H.265/MPEG-H) |
Main @ L4.1 and amp; L5.1 Main 10 @ L4.1 and amp; L5.1 Main 10 422 @ L4.1 and amp; L5.1 |
|
H.264 Profiles |
H.264 BP/MP/HP@ level 5.0 |
|
MPEG2 Profiles |
MPEG2 SP@ML,MP@HL |
|
AVS+ Profiles |
AVS-P16(AVS+) |
|
Audio Decoding |
|
|
Audio Standard |
MPEG-1 Audio Layers I and amp; II AAC-LC, HE AAC V1/V2 , AC3/E-AC3 DD/DD Plus DD Passthrough DRA |
|
Data output |
|
|
Subtitle |
DVB/EBU/Teletext |
|
Closed Caption |
EIA 608, EIA 708, EIA 608-to-708 |
|
Control and amp; Monitoring |
|
|
Interface |
1*RJ-45, 10/100 Base-T, for equipment IP Control |
|
Remote Control |
Web management |
|
Local Control |
LCD display and keypad |
|
Environment |
|
|
Power Supply |
AC 90V~250V, 50/60Hz |
|
Power consumption |
24W |
|
Dimension |
450*350*44mm |
|
Operating temperature |
0 ~ 45℃ |
|
Storage temperature |
-10 ~ 60℃ |
|
Humidity |
10 ~ 90% non-condensed |
|
Weight |
5KG |
Specifications are subject to change without notice.
